Specifications

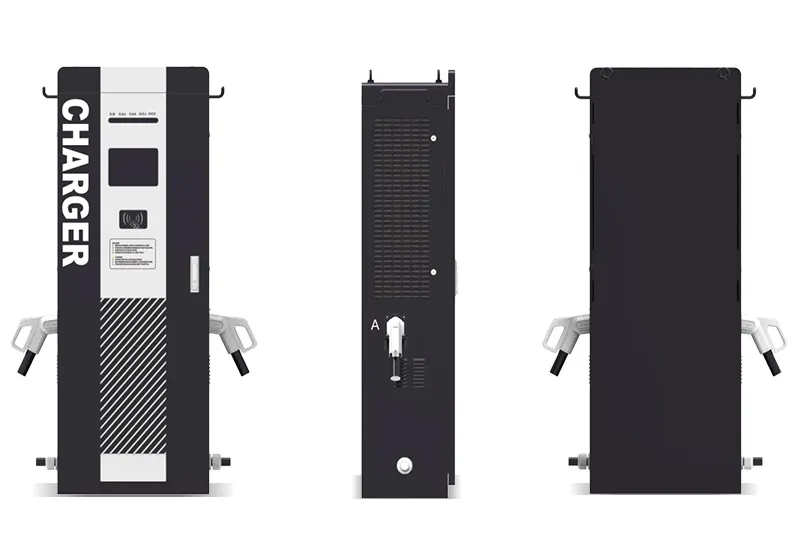

EV DC/DC chargers provide fast DC charging for electric vehicles by drawing power directly from battery energy storage systems, DC bus systems, or other DC power sources. These 120kW integrated DC chargers use multiple high-frequency DC/DC power modules in parallel redundancy to convert DC input into stable charging output for the vehicle. They are suitable for mobile energy storage, solar-storage-charging systems, microgrids, emergency charging vehicles, and weak-grid sites. Our EV chargers also integrate DC/DC charging modules, charging connectors, HMI, communication, metering, and billing functions in a modular structure that supports easier installation, commissioning, operation, and maintenance.

  • Protection Rating: IP54
  • Operating Temperature Range: -25°C to +50°C
  • Current Sharing Imbalance Between Modules: ≤5%
Technical Specifications
EVP700-180C/20000C-OC-AG2S
(Dual Connectors, Equal Power Sharing)		 EVP700-180/20000C-OC-AG1
(Single Connector)
Mechanical Module Configuration Model EVC700-20000C EVC700-20000C
Configured Module Quantity 6 6
Cooling Method Forced air cooling Forced air cooling
Enclosure Dimensions (W × D × H) 650 × 400 × 1700 mm 650 × 400 × 1700 mm
DC Input Input Voltage 700 Vdc / 600 Vdc 700 Vdc / 600 Vdc
Input Voltage Range 600 ~ 800 Vdc (Full load), 200 ~ 600 Vdc (Linear derating) 600 ~ 800 Vdc (Full load), 200 ~ 600 Vdc (Linear derating)
DC Output DC Output Voltage 200 ~ 750 Vdc 200 ~ 750 Vdc
Rated Output Current 180 A 180 A
Maximum Output Power 120 kW 120 kW
Current Limit Adjustable Range 10% ~ 110% stepless adjustable 10% ~ 110% stepless adjustable
Performance Peak-to-Peak Noise ≤ ±0.5% ≤ ±0.5%
Voltage Regulation Accuracy ≤ ±0.5% ≤ ±0.5%
Current Regulation Accuracy ≤ ±1% ≤ ±1%
Current Sharing Accuracy ≤ ±5% ≤ ±5%
System Efficiency ≥ 95% ≥ 95%
Compliance & Protection Communication Interface CAN, RS485, Ethernet CAN, RS485, Ethernet
Ingress Protection Rating IP54 IP54
Noise Level ≤ 60 dB ≤ 60 dB
