Specifications

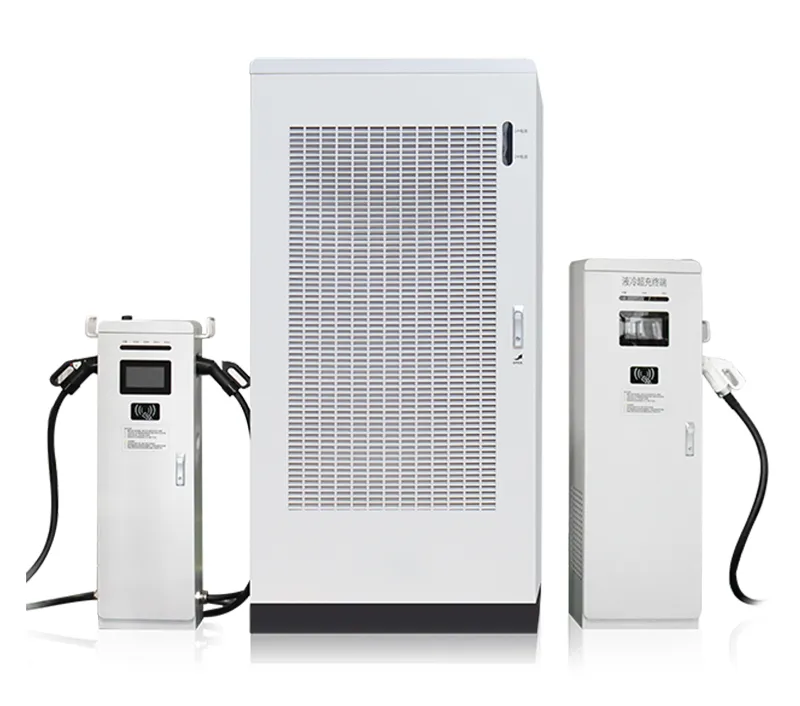

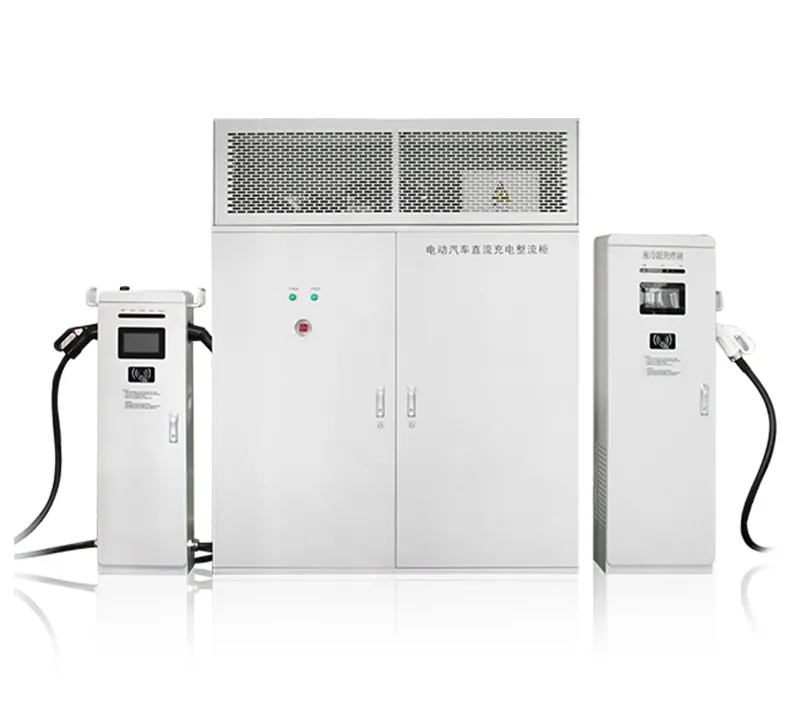

This split-system DC fast charger uses 40kW-60kW air-cooled or 30kW-40kW liquid-cooled constant-power charging modules and supports output voltages up to 1000V. Charging efficiency exceeds 96%, and the system can be configured with 2 to 12 charging connectors. It is suitable for public charging stations, highway service areas, heavy-duty truck charging, bus depots, and other high-power charging applications.

  • Air-Cooled Protection Rating: IP55
  • Liquid-Cooled Power Distribution Cabinet Protection Rating: IP65
  • Liquid-Cooled Heat Exchange Cabinet Protection Rating: IP54
  • Operating Temperature: -30°C to +70°C (power derating above 55°C)
  • Standby Power Consumption: ≤100W
Technical Specifications
INCEVD-360A INCEVD-480A INCEVD-360L INCEVD-480L
Mechanical Cooling System Matrix: Forced air cooling; Terminal: Forced air/Liquid cooling Matrix: Forced air cooling; Terminal: Forced air/Liquid cooling Matrix: Liquid cooling; Terminal: Forced air/Liquid cooling Matrix: Liquid cooling; Terminal: Forced air/Liquid cooling
Dimensions (Matrix) 1000 × 850 × 1900 mm 1000 × 850 × 1900 mm 1700 × 900 × 2230 mm 1700 × 900 × 2230 mm
Dimensions (Fast Charge Single/Dual-Plug Terminal) 400 × 240 × 1350 mm 400 × 240 × 1350 mm 400 × 240 × 1350 mm 400 × 240 × 1350 mm
Dimensions (Supercharge Single-Plug Terminal) 500 × 300 × 1600 mm 500 × 300 × 1600 mm 500 × 300 × 1600 mm 500 × 300 × 1600 mm
AC Input Rated Input Voltage 380 Vac ± 20% 380 Vac ± 20% 380 Vac ± 20% 380 Vac ± 20%
Grid Frequency 45 ~ 65 Hz 45 ~ 65 Hz 45 ~ 65 Hz 45 ~ 65 Hz
Power Factor (PF) ≥ 0.99 ≥ 0.99 ≥ 0.99 ≥ 0.99
System Efficiency ≥ 96% (At half load and above) ≥ 96% (At half load and above) ≥ 96% (At half load and above) ≥ 96% (At half load and above)
DC Output Power Distribution Intelligent scheduling, allocation on demand Intelligent scheduling, allocation on demand Intelligent scheduling, allocation on demand Intelligent scheduling, allocation on demand
Output Channels 2 to 6 connectors 2 to 8 connectors, supports 1 supercharging channel 2 to 6 connectors 2 to 8 connectors, supports 1 supercharging channel
Output Voltage DC 150 ~ 1000 V DC 150 ~ 1000 V DC 150 ~ 1000 V DC 150 ~ 1000 V
Max. Current / Total System 1200 A 1600 A 1200 A 1600 A
Terminal Output Current Fast charge single-plug: 250A; Fast charge dual-plug: 250A × 2; Supercharge single-plug: 600A / 800A; Customized terminal: 1000A
Compliance BMS Communication Compatible with old and new standards, meeting the charging needs of old and new vehicle models
Protection Operating Temperature -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C)
Protection Rating IP55 for system enclosure IP55 for system enclosure IP65 for power & distribution compartment, IP54 for heat exchange compartment IP65 for power & distribution compartment, IP54 for heat exchange compartment
Dustproof Class G3-level dust filter G3-level dust filter G3-level dust filter G3-level dust filter
Protection Functions Input over/under voltage protection, Output overvoltage protection, Output overcurrent protection, Short circuit protection, Battery reverse connection protection, Insulation monitoring protection, Door enclosure protection, BMS data anomaly protection, Emergency stop protection, Electromagnetic lock anomaly protection, Abnormal un-plugging protection, Lightning/Surge protection, Anti-tilt alarm protection (optional), Flooding/Water-immersion alarm protection (optional), etc.
Application Cases
Application Cases

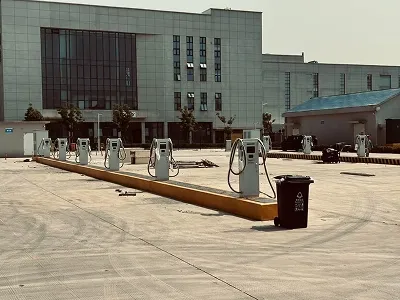

Yidiantong Charging Station, Wuhan

480kW Split-Type DC Charging System with Six Charging Terminals
Application Cases

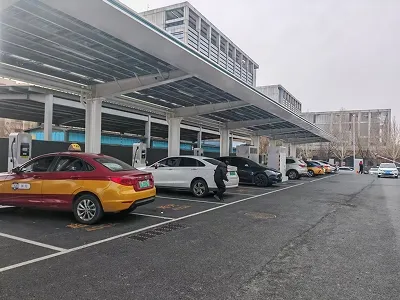

Urban Charging Infrastructure Project, Longgang, Shenzhen

Application Cases

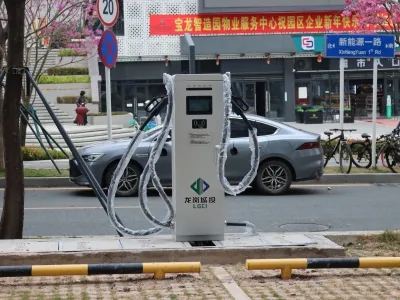

Jiangzhuanghu Charging Station, Beijing

480kW-640kW Split-Type Rectifier Cabinet
