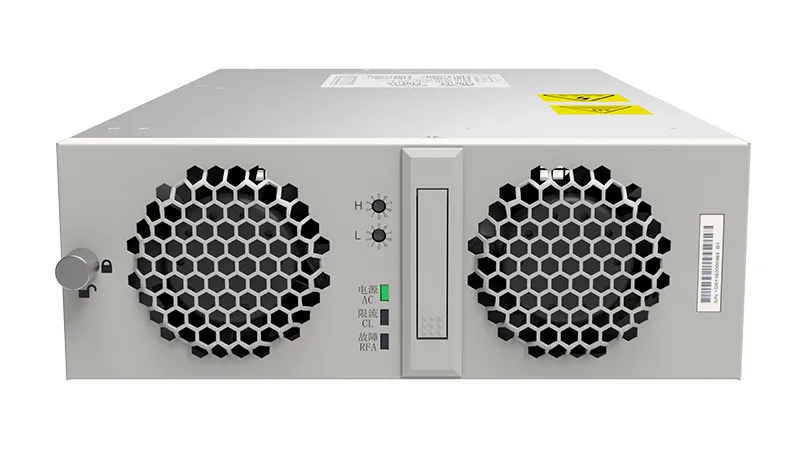

AC/DC Three-Phase Charger Module 20kW

AC/DC Three-Phase Charger Module 20kW
  • AC/DC Three-Phase Charger Module 20kW
  • AC/DC Three-Phase Charger Module 20kW
Contact Us
Specifications

Our 20kW DC power modules are used in charging systems and industrial DC power applications that need stable output and flexible voltage coverage. These AC/DC rectifier modules take three-phase AC input and deliver wide-range DC output, which is suitable for new energy vehicles, industrial DC power supply, and medium- to high-power charging systems. DSP digital control gives the modules more precise power regulation, while resonant soft-switching helps reduce switching loss and active PFC improves input current quality.

  • Output Voltage Range: 30V ~ 105V / 60V ~ 200V / 20V ~ 120V (three models available)
  • Rated Output Current: 200A / 100A
Technical Specifications
Model ICR100-20000C (105V) ICR200-20000C ICR100-20000F
Input Parameters
Rated Input Voltage 3-Phase, 380 Vac / 480 Vac 3-Phase, 380 Vac / 480 Vac 3-Phase, 380 Vac / 480 Vac
Frequency 45 Hz ~ 65 Hz 45 Hz ~ 65 Hz 45 Hz ~ 65 Hz
Input Current < 40 A < 40 A < 40 A
Power Factor (PF) ≥ 0.99 ≥ 0.99 ≥ 0.99
THDi ≤ 5% ≤ 5% ≤ 5%
Output Parameters
Rated Output Power 20 kW 20 kW 20 kW
Output Rated Value — — 100 V @ 200 A
Rated Output Current 200 A 100 A —
Output Voltage Range 30 ~ 105 V 60 ~ 200 V 20 V ~ 120 V (Constant power 91 ~ 120 V, output power 20 kW)
Output Current Range — — 0 ~ 220 A (T ≤ 55℃)
Efficiency ≥ 94.5% ≥ 94.5% ≥ 95.0% (Peak)
Communication Interface CAN Bus CAN Bus —
Operating Environment
Operating Temperature Range -40°C ~ 55°C (Normal Operation); 55°C ~ 75°C (Derating Output) -40°C ~ 55°C (Normal Operation); 55°C ~ 75°C (Derating Output) -40°C ~ 55°C (Normal Operation); 55°C ~ 75°C (Derating Output)
Storage Temperature Range -40°C ~ 75°C -40°C ~ 75°C -40°C ~ 75°C
Relative Humidity 0 ~ 95% RH (Non-condensing) 0 ~ 95% RH (Non-condensing) 0 ~ 95% RH (Non-condensing)
Altitude Below 2000m (Full Load Output) Below 2000m (Full Load Output) Below 2000m (Full Load Output)
Physical Characteristics
Dimensions (W × H × D) 240 × 85 × 370 mm 240 × 85 × 370 mm 214 × 84 × 426 mm (Excl. Handle/Terminals); 214 × 84 × 469 mm (Incl. Handle/Terminals)
Net Weight Approx. 9 kg Approx. 9 kg Approx. 10 kg
