Floor-Mounted DC Charger 60-400kW

Floor-Mounted DC Charger 60-400kW
Contact Us
Specifications

The floor-mounted DC charger uses high-efficiency 30kW or 40kW constant-power charging modules and supports output voltages up to 1000V. Charging efficiency exceeds 96%, and the charger supports wall-side installation. It is suitable for public charging stations, highway parking areas, and other commercial charging applications.

  • Protection Rating: IP55
  • Operating Temperature: -30°C to +70°C (power derating above 55°C)
  • Standby Power Consumption: ≤20W
  • Zero-Power Standby: Supported
Technical Specifications
INCEVD-180A INCEVD-240A INCEVD-320A INCEVD-400A
Mechanical Cooling System Forced air cooling Forced air cooling Forced air cooling Forced air cooling
Dimensions (W × D × H) 750 × 600 × 1800 mm 750 × 600 × 1800 mm 800 × 800 × 2000 mm 800 × 800 × 2000 mm
AC Input Rated Input Voltage 380 Vac ± 20% 380 Vac ± 20% 380 Vac ± 20% 380 Vac ± 20%
Grid Frequency 45 ~ 65 Hz 45 ~ 65 Hz 45 ~ 65 Hz 45 ~ 65 Hz
Power Factor (PF) ≥ 0.99 ≥ 0.99 ≥ 0.99 ≥ 0.99
System Efficiency ≥ 96% (At half load and above) ≥ 96% (At half load and above) ≥ 96% (At half load and above) ≥ 96% (At half load and above)
DC Output Output Channels Supports single/dual connector configurations Supports single/dual connector configurations Supports single/dual connector configurations Supports single/dual connector configurations
Output Voltage DC 150 ~ 1000 V DC 150 ~ 1000 V DC 150 ~ 1000 V DC 150 ~ 1000 V
Max. Current / Single Connector 250 A 250 A 250 A 300 A
Max. Current / Total System 500 A 500 A 500 A 600 A
Compliance BMS Communication Compatible with old and new standards, meeting the charging needs of old and new vehicle models
Protection Operating Temperature -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C)
Protection Functions Input over/under voltage protection, Output overvoltage protection, Output overcurrent protection, Short circuit protection, Battery reverse connection protection, Insulation monitoring protection, Door enclosure protection, BMS data anomaly protection, Emergency stop protection, Electromagnetic lock anomaly protection, Abnormal un-plugging protection, Lightning/Surge protection, Anti-tilt alarm protection (optional), Flooding/Water-immersion alarm protection (optional), etc.
Dustproof Class G3-level dust filter G3-level dust filter G3-level dust filter G3-level dust filter
Application Cases
Application Cases

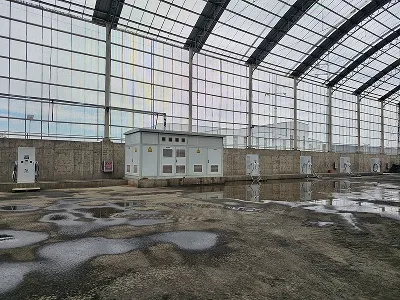

Jiangzhuanghu Charging Station, Beijing

480kW-640kW Split-Type Rectifier Cabinet
Application Cases

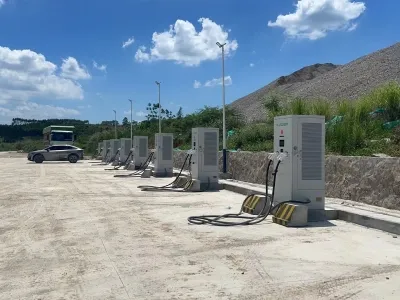

Shangsi Mining Heavy Truck Charging Station, Guangxi

320kW Outdoor Dual-Gun Integrated DC Charger
Application Cases

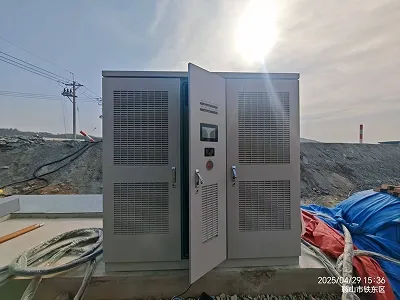

Dongtie Mine Site, Anshan, Liaoning

640kW Outdoor Four-Gun Integrated DC Charger
