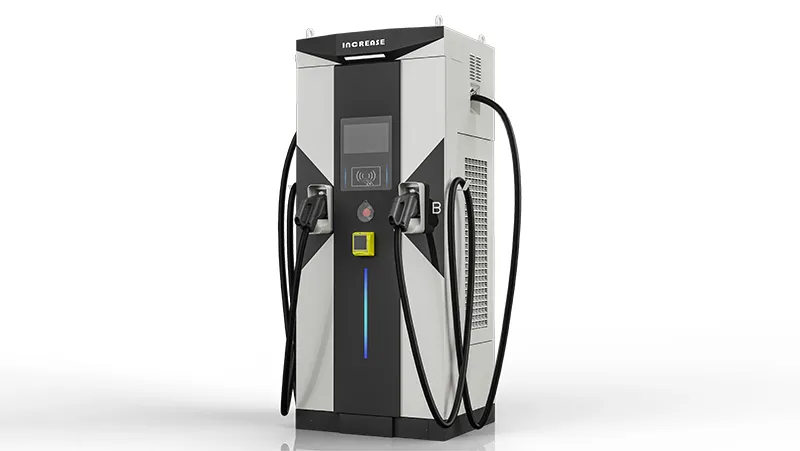

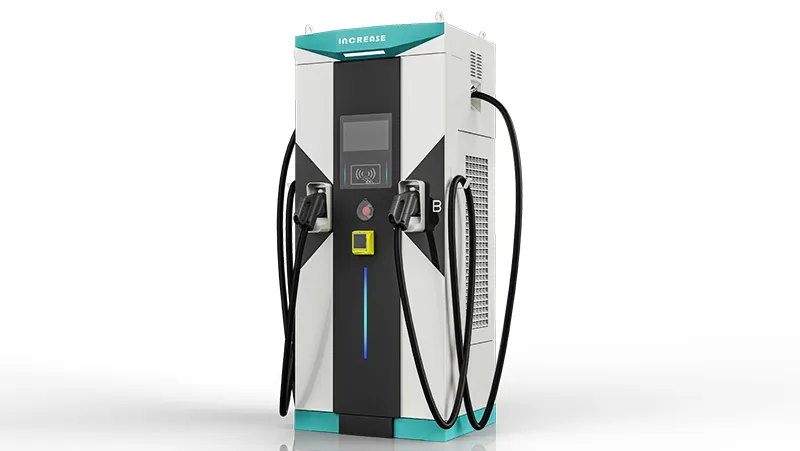

Floor-Mounted DC EV Charger 60-160kW

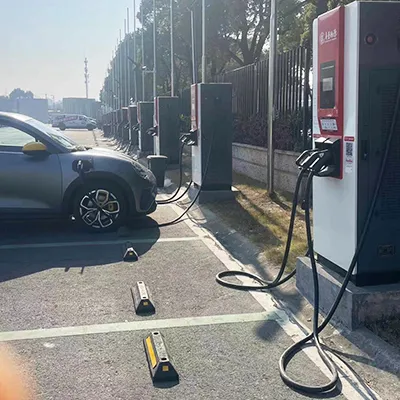

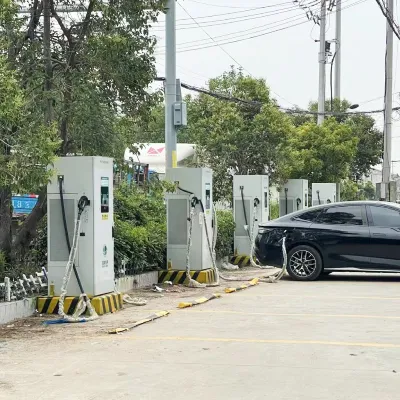

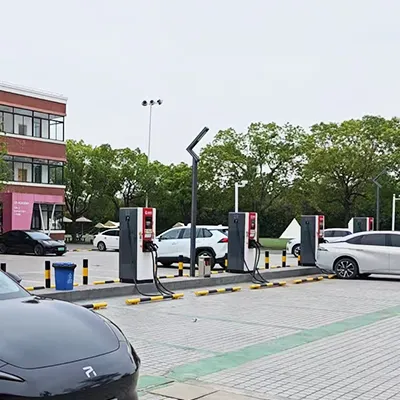

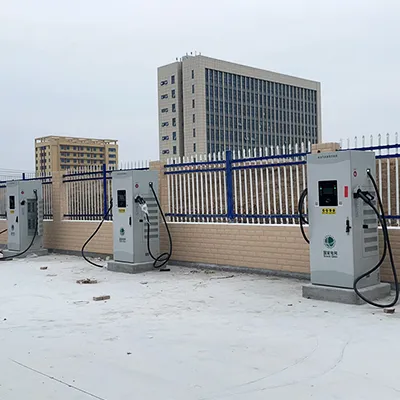

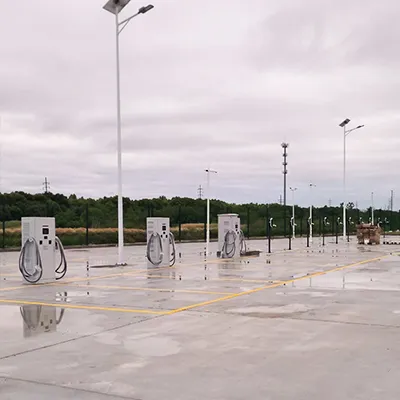

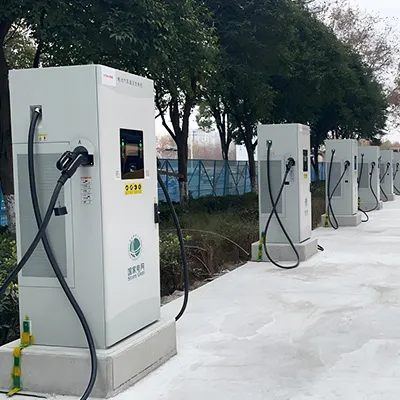

This floor-mounted DC EV charger uses high-efficiency 30kW or 40kW constant-power charging modules and supports output voltages up to 1000V. Charging efficiency exceeds 96% and is suitable for public charging stations, highway parking areas, and other charging locations that require higher charging capacity. The charger supports wall-side installation for flexible site deployment.

Protection Rating: IP55
Operating Temperature: -30°C to +70°C (power derating above 55°C)
Standby Power Consumption: ≤20W
Zero-Power Standby: Supported

Technical Specifications

		60kW	80kW	120kW	160kW
Mechanical	Dimensions (W × D × H)	700 × 450 × 1650 mm	700 × 450 × 1650 mm	700 × 450 × 1650 mm	700 × 450 × 1650 mm
Mechanical	Cooling System	Forced air cooling	Forced air cooling	Forced air cooling	Forced air cooling
AC Input	Rated Input Voltage	380 Vac ± 20%	380 Vac ± 20%	380 Vac ± 20%	380 Vac ± 20%
	Grid Frequency	45 ~ 65 Hz	45 ~ 65 Hz	45 ~ 65 Hz	45 ~ 65 Hz
	Power Factor (PF)	≥ 0.99	≥ 0.99	≥ 0.99	≥ 0.99
	System Efficiency	≥ 96% (At half load and above)	≥ 96% (At half load and above)	≥ 96% (At half load and above)	≥ 96% (At half load and above)
DC Output	System Power	60 kW	80 kW	120 kW	160 kW
	Output Channels	Supports single/dual connector configurations	Supports single/dual connector configurations	Supports single/dual connector configurations	Supports single/dual connector configurations
	Output Voltage	DC 150 ~ 1000 V	DC 150 ~ 1000 V	DC 150 ~ 1000 V	DC 150 ~ 1000 V
	Max. Current / Single Connector	200 A	250 A	250 A	250 A
	Max. Current / Total System	200 A	267 A	400 A	500 A
Compliance	BMS Communication	Compatible with old and new standards, meeting the charging needs of old and new vehicle models
Protection	Operating Temperature	-30°C ~ +70°C (Derating above 55°C)	-30°C ~ +70°C (Derating above 55°C)	-30°C ~ +70°C (Derating above 55°C)	-30°C ~ +70°C (Derating above 55°C)
	Protection Rating	IP55	IP55	IP55	IP55
	Protection Functions	Input over/under voltage protection, Output overvoltage protection, Output overcurrent protection, Short circuit protection, Battery reverse connection protection, Insulation monitoring protection, Door enclosure protection, BMS data anomaly protection, Emergency stop protection, Electromagnetic lock anomaly protection, Abnormal un-plugging protection, Lightning/Surge protection, Anti-tilt alarm protection (optional), Flooding/Water-immersion alarm protection (optional), etc.
